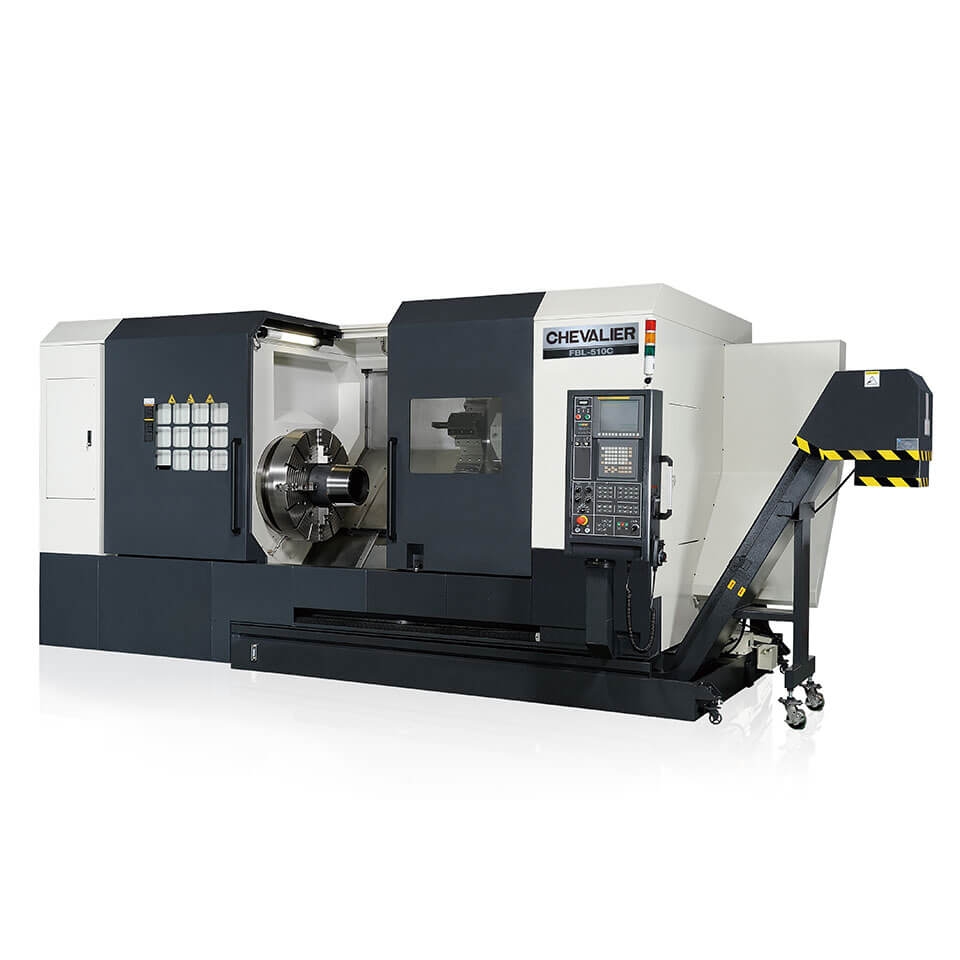

FBL- 510C Series (MC and L models) Slant-Bed Lathe With Box Ways

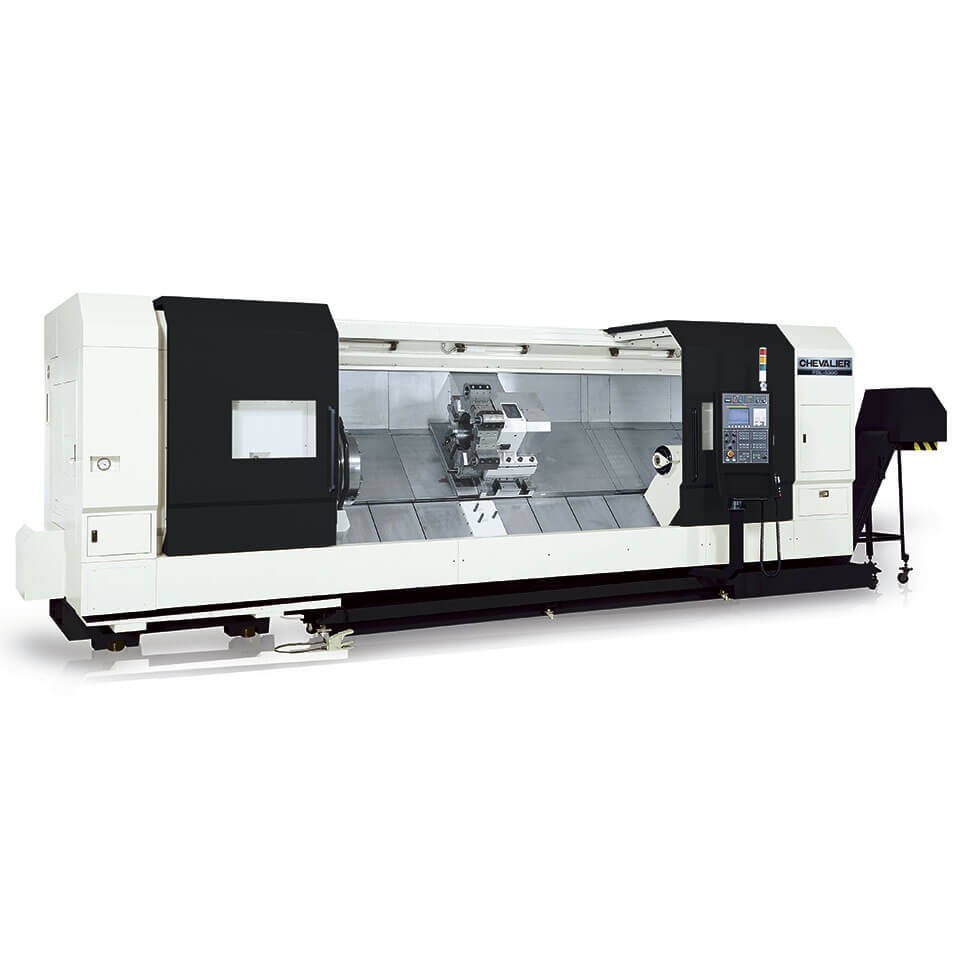

FBL- 530C Series (MC and L models) Slant-Bed Lathe With Box Ways
Product Name : FBL- 500 Series (MC and L models)
Product Description
Big Bore Slant-Bed Lathe With Box Ways
Inquiry
  • 45-degree slant-bed structure with low center of gravity offers easy access and workpiece changeovers.
  • Torque tube design structure that can withstand greater stress without deforming and provides maximum vibration damping.
  • Ribbed Meehanite® casting provides strong support and excellent damping absorption reducing deflection and vibration during heavy machining.
  • This lathe features up to 60HP spindle motor satisfying most cutting conditions.
  • MC model with the live tooling function offers additional flexible machining capabilities to make more complex workpieces with one machine.
  • L model is the long bed design that provides higher cutting lengths.
  • FANUC Control
  • Box Way Structure
  • Swing Over Bed: up to 1,030mm (41")
  • Spindle Motor: up to 60 HP
  • Transmission: 2-4 Speed Gear Box
  • Chuck Size: up to 800mm (32")
  • Bar Capacity: up to 381mm (15")
  • Turning Length: up to 4,000mm (160")
  • Live Tooling and C-Axis Available
  • Programmable Tailstock
